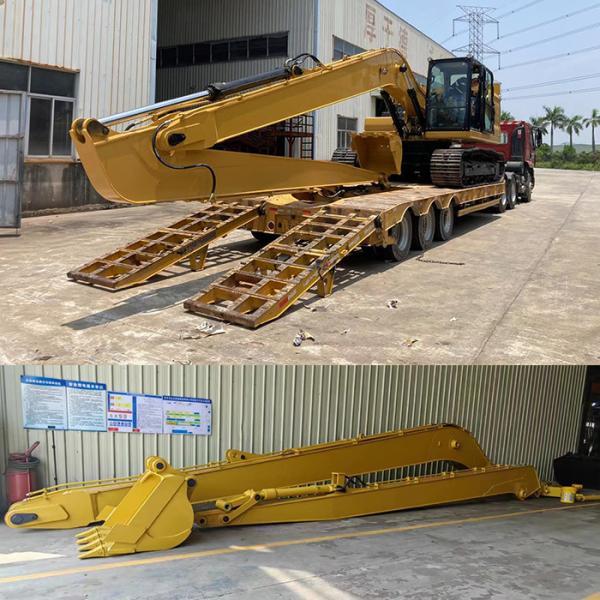

Philippine long boom excavator high quality excavator long reach boom arm customized CAT320D 18Meters
Advantages of excavator long arm factory
1. Suitable for all brands of excavators.
2. Color, length, and material can be made according to you.
3. Additional piping can be added to accommodate some additional applications.
4. Boom cylinders and stick cylinders can also be provided according to customer needs.
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) | Bucket Volume(cbm) | Cylinder(ton) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 | 0.15-0.3 | 12T |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 | 0.4-0.6 | 12T |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 | 0.4-0.7 | 12T |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 | 0.6-1.2 | 12T |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 | 0.5-1 | 20T |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 | 0.5-1.1 | 20T |
| | | | | | | | | | |
Here are some advantages of long arm excavator
- Long reach Boom-Arm is ideal for river and sea dredging on land or barge.
- lubrication concentrate system, you can see there are 3 pieces of lubrication tube , they all concentrate here, it is easy and convenient for the operator to refill the lubrication oil..
- our bushing at the boom base, you can see the bushing is graphite copper sleeve material.
- Ideal for marine wall construction.
- our bushing at the boom base, you can see the bushing is graphite copper sleeve material.
- The design is comprehensively simulated, ensures design integrity, and identifies potential stress and fatigue points.
- For the bushing in the boom middle , we use steel material, if the client has special require, we also can use copper sleeve material.
- The welding on the boom end is 4 passes, and 3 layers.
| name | main material | warranty(day) |
| Boom | Q355B | 360 |
| Arm | Q355B | 360 |
| Bucket | Q355B | 90 |
| Bucket cylinder | - | 180 |
| Linkage assenbly | Q355B | 180 |
1. Material: The big and small arms are made of Shaogang q355b, the iron pipe on the arm is a national standard cold-drawn seamless pipe, the pin shaft is 40Cr, the high-pressure rubber hose is a 4-layer joint steel ring, and the oil pipe is a single-layer hose, which is inserted into the boom The casing at the bottom is a graphite alloy copper sleeve.
2. Configuration: one set of big and small arms, six pins, four high-pressure oil pipes, three oil pipes, one set of connecting rod assembly, one bucket cylinder, and one bucket.
3. Product advantages: plasma cutting, machine milling, robot welding, boring after welding, assembly line production operations, better quality assurance. It can be customized according to working conditions to meet the construction needs of different users. The opening angle of the big and small arms can reach 163 degrees, and the digging radius and digging height are larger.
4. Applicable working conditions of the extended arm: municipal engineering, subway construction, river dredging, reservoir dredging and other water conservancy projects.
Excavator long reach fronts introduction
As for the elongated arm excavator, I believe that many friends in the mechanical industry are familiar with it. Municipal construction, improvement of subway traffic, sewage reconstruction, river cleaning and so on require a large number of construction machinery and equipment, and the standard work of mining machinery engineering should not be completed. Therefore, the elongated arm excavator uses super-long arm and super-long arm. It shows that they can play an important role in dredging, revetment and slope, while subway construction is restricted by the ground environment conditions.
