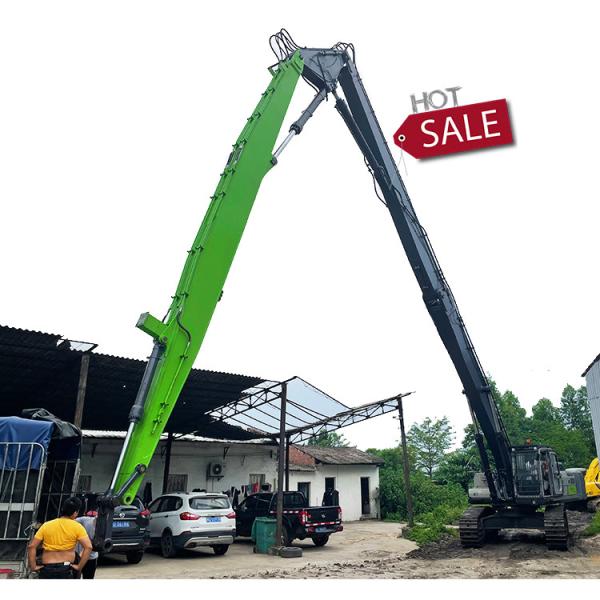

Heavy Equipment Parts Excavator High Reach Arm Demolition 26M 28M 30M
Click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop with Precision Equipments
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
2. A High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
3. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some extra application.
4. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
CERTIFICATIONS
CE certification & Utility model patent certificates
ZHONGHE excavator high reach demolition boom
The excavator demolition boom is specially designed to increase the safe distance between the cockpit and the working parts, which is designed to three sections generally by adding a middel arm.
With the advance of urbanization, many old houses have been requisitioned, so there will be more and more demand for excavators to demolish buildings. The original manual excavation has the disadvantages of slow progress and high cost. The blasting demolition of buildings has high requirements to the surrounding environment, high risk coefficient to the surrounding buildings, and easy to loosen the surrounding civil building structure. Therefore, the use of excavators to remove the boom is a wise choice.
Zhonghe excavator high reach demolition boom's advangtages
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
6. Boom and sticks' angle can be opened to achive 180°
ZHONGHE excavator high reach boom configuration
| Three-section Demolition Boom Accessories |
| name | Unit | mian material | warranty(day) |
| Boom | 1 | Q355B | 360 |
| Middle arm | 1 | Q355B | 360 |
| Arm | 1 | Q355B | 360 |
| Bucket | 1 | Q355B | 90 |
| 22 ton Bucket cylinder | 1 | — | 180 |
| Linkage assenbly | 1 | Q355B | 180 |
| Pin | 8 | 40Cr | 0 |
| High-pressure hose | 22 | 4 layers wire ring | 0 |
| Lubrication pipe | 5 | 1 layer wire ring | 0 |
| Shut-off valve | 10 | — | 0 |
The specification of excavator high reach arm demolition
| Excavator Ton | Total Length(mm) | (A)Transport Height(mm) | (B)Maximum Lifting Height(mm) | Limit weight of hydraulic shear(kg) | Cylinder(Ton) | Counterweight(Ton) |
| 25T | 16000 | 3160 | 14900 | 2000 | 20T | 4T |
| 30T | 18000 | 3300 | 17000 | 2000 | 20T | 4.5T |
| 35T | 20000 | 3300 | 19000 | 2000 | 20T | 4.5T |
| 40T | 22000 | 3400 | 21050 | 2000 | 20T | 5T |
| 45T | 24000 | 3400 | 23100 | 2000 | 20T | 5T |
Case of construction
