Optional 18M 30M Excavator Demolition , Excavator High Reach Boom
Click here to check out the catalog:Zhonghe Machinery Catalog-Contact Sales Manager Aria Directly
ZHONGHE MACHINERY'S ADVANTAGES
1. Precision Equipments
Our commpany owns 14000㎡ steel structure workshop with plenty of high precision processing equipments.
2. A R&D Team with Skillful Workers
Our R&D team use precision computer software to calculate working parameters of different kinds of excavator booms.
Our chief engineer has 10+ years experience on customizing excavator booms and attachments.
Most of our welding workers have 5+ years experience.
3. Customization
(1)Match all brand excavator.
(2)Color, length, material can do according to you.
(3)Extra pipeline can be added to suit to some special needs.
5. Prompt Lead Time
(1)Our lead time is 7-15 days.
(2)Our annual output of various types of excavator boom arms can reach 600 sets.
6. Excellent Service
(1)24 hours online service.
(2)Can make an appointment for technical video support.
CERTIFICATIONS
CE certification & Utility model patent certificates

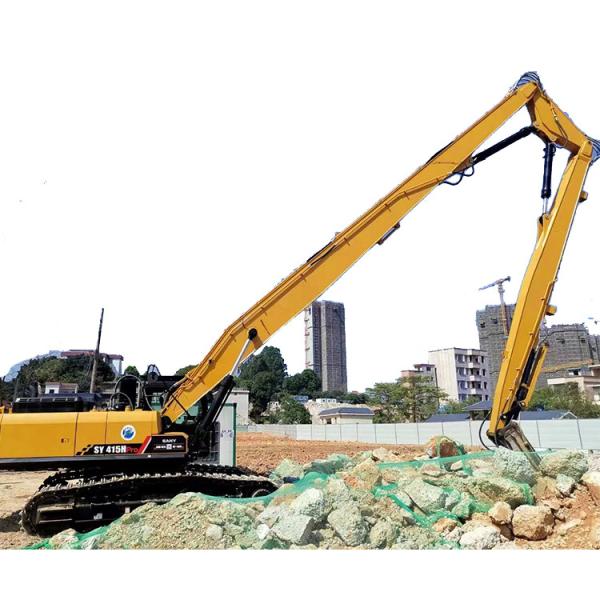

ZHONGHE excavator high reach demolition boom
The excavator demolition boom is a group of an excavator's working device. In particular, a section of middle arm is added. It is specially designed to increase the safe distance between the cockpit and the working parts, which is designed to three sections or multi sections generally.
Zhonghe excavator high reach demolition boom's advangtages
1. Q355B as default, Q690D optional.
2. Key Force-bearing Parts are Reinforced.
3. Welding is full and smooth.
4. Adopt national standard precision pipelines.
5. Boom bushing come with an alloy copper sleeve(with self-lubricating carbon powder inside).
6. Boom and sticks' angle can be opened to achive 180°
ZHONGHE excavator high reach boom configuration
| Three-section Demolition Boom Accessories |
| name | Unit | mian material | warranty(day) |
| Boom | 1 | Q355B | 360 |
| Middle arm | 1 | Q355B | 360 |
| Arm | 1 | Q355B | 360 |
| Bucket | 1 | Q355B | 90 |
| 22 ton Bucket cylinder | 1 | — | 180 |
| Linkage assenbly | 1 | Q355B | 180 |
| Pin | 8 | 40Cr | 0 |
| High-pressure hose | 22 | 4 layers wire ring | 0 |
| Lubrication pipe | 5 | 1 layer wire ring | 0 |
| Shut-off valve | 10 | — | 0 |
The specification of excavator high reach arm demolition
| Excavator Ton | Total Length(mm) | (A)Transport Height(mm) | (B)Maximum Lifting Height(mm) | Limit weight of hydraulic shear(kg) | Cylinder(Ton) | Counterweight(Ton) |
| 25T | 16000 | 3160 | 14900 | 2000 | 20T | 4T |
| 30T | 18000 | 3300 | 17000 | 2000 | 20T | 4.5T |
| 35T | 20000 | 3300 | 19000 | 2000 | 20T | 4.5T |
| 40T | 22000 | 3400 | 21050 | 2000 | 20T | 5T |
| 45T | 24000 | 3400 | 23100 | 2000 | 20T | 5T |
Case of construction
Company profile
